1.1 Documentation description

The API interface interacts through HTTPS, and the entire API adopts a Restful structure. API calls are authorized through OAuth2. The data organization form of request and response adopts JSON format.

1.2 Instructions

First, you need to get the "Client ID" and "Client Secret" data of the merchant number from your account manager as OAuth2 authorization authentication verification parameters.

1.3 Interface address

https://openapi. omoney.com

1.4 Headers

Every time you submit an API request, you need to set the message header information, including the signature information. The following is a list of header information parameters.

parameter	Is it required?	illustrate
Accept	yes	application/json
Content-Type	yes	application/json, to obtain the access_token interface, you need to pass the value application/x-www-form- urlencoded

1.5 Merchant authorization

Use OAuth2 authorization. The merchant initiates a POST request to the payment platform to obtain access_token . The request address is: /v1/oauth/token?grant_type=client_credentials&scope= write,read

Header parameters

parameter	Is it required?	illustrate
Authorization	yes	The value is "Basic "+base64(Client ID:Client Secret)
Accept	yes	application/json
Content-Type	yes	application/x-www-form- urlencoded

The response data format is as follows:

{

" access_token " : "653633b2-8287-47b6-a7e4-40ec252fe9a8",

" token_type " : "bearer",

" expires_in " : 43035,

"scope " : " write,read "

}

Chapter 2 Merchant Standard Interface

2.1 Collection

The merchant system sends it in POST mode and uses UTF8 encoding format.

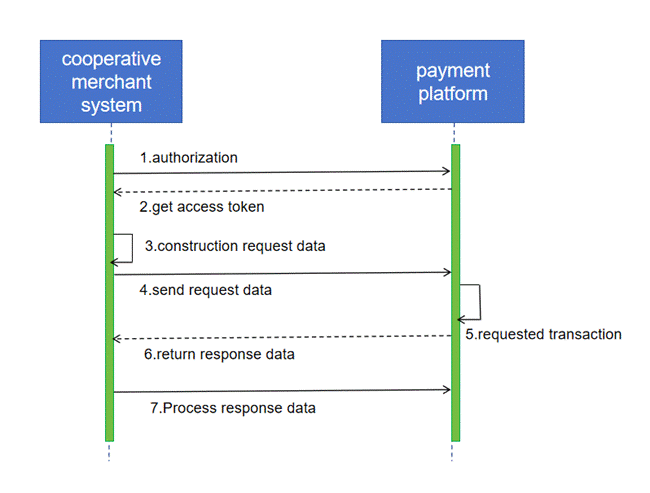

2.1.1 Data interaction



2.1.2 Request entry

/v1/paymentDirect

2.1.3 Header

parameter	Is it required?	illustrate
Authorization	yes	The value is "Bearer " + access_token
Accept	yes	application/json
Content-Type	yes	application/json

2.1.4 Payment request parameters

Request data description

parameter	The maximum length	Is it required?	illustrate
order_id	50	yes	Merchant order number. Note that the order number is a unique identifier and cannot be repeated.
payment_method	50	yes	Payment method code, EPMB
amount	13,2	yes	Amount, rounded to two decimal places
currency	3	yes	Currency, such as: CNY, USD, EUR, etc.
request_type	50	yes	Device identification, WEB, WAP, SDK
description	255	yes	Order description, such as: product title/transaction title/order title/order keyword, etc. Note: Special characters such as /, =, &, etc. cannot be used.
return_url	255	yes	Return to merchant address after payment is completed
notify_url	255	yes	After the customer's payment is completed, the payment platform sends the payment result to the merchant, and the merchant system is responsible for receiving the notification URL.
website	255	yes	Merchant site, format: http://www.mysite.com
cardnum	5 0	yes	credit card number
cardyear	4	yes	Credit card validity year, such as 2 022
cardmonth	2	yes	Credit card valid month, such as 0 9
cardcvv	4	yes	Credit card C VV 3-4 digits
source		yes	Customer information, see customer information form for details

2.1.5 Customer information (source)

parameter	The maximum length	Is it required?	illustrate
client_ip	20	yes	The IP of the customer when paying
first_name	64	yes	Customer name
middle_name	64	no	Customer middle name
last_name	64	yes	Customer last name
country	3	yes	The abbreviation of the country where the customer is located, such as: CN, US
state	50	yes	Must be the abbreviation of the state/province where the customer's country is located, such as: BEIJING,FL (Credit card payment CA, US is required, other countries can leave it blank)
city	50	yes	Customer's city
zip	10	yes	(CA and US are required for credit card payment, and can be left blank for other countries) The postal code of the customer’s location, the US and CA postal code formats are as follows: US: [5 digits]-[4 digits], for example: 12345-6789 CA:[letter][number][letter][space][number][letter][number], for example: A1B 2C3
email	126	yes	Customer email
address1	255	yes	Customer shipping address
address2	255	no	Customer detailed address
phone _	50	yes	Customer phone number
f _	11	no	Brazilian customer tax receipt, required for EBANX payment, 11 digits



The merchant initiates an HTTP POST request to the payment platform API. The data format is as follows:

{

"return_ url ":"http://www.mysite.com/return_url",

"notify_ url ":"http://www.mysite.com/notify_url",

"payment_method":" xxxx ",

" request_type": "WEB ",

"order_id":"100096247512",

"amount":"1.00",

" currency":"CNY ",

"description":"Product title",

" website": "http://www.mysite.com ",

"source ":{

" first_name": "Chris ",

" middle_name ":"",

" last_name": "Ma ",

" country":"CN ",

"state":" BEIJING ",

"city":" BEIJING ",

"zip":"400000",

"email":"test@test.com",

"phone":"86-13800000000",

"address1":"32nd Floor, Zhongwai SOHO Building, Chaoyang District, Beijing",

"address2":"Area C",

" client_ip ":"113.204.136.66",

" cpf ":""

}

}

2.1.6 response

Response data description

parameter	The maximum length	Is it required?	illustrate
order_id	50	yes	Merchant order number
payment_id	50	yes	Payment platform serial number
transaction_id	50	yes	Payment platform order number
payment_method	50	yes	payment method
amount	13,2	yes	Amount, rounded to two decimal places
currency	3	yes	Currency, CNY, USD, EUR, etc.
request_type	50	yes	Device identification, WEB, WAP, SDK
description	255	yes	Order description
status	50	yes	Transaction status, SUCCESS is successful, FAIL is failed, WAIT_PAY is waiting for payment , PROCESSING is being processed, Redirect3DS is waiting for 3D authentication
remarks	50	yes	Reason for transaction failure
error_code	100	yes	error code
create_time		yes	creation time
update_time		yes	Update time
pay_url		no	Payment processing link , redirected by the client to complete payment

After the merchant initiates a request to the payment platform API, the merchant's payment data is returned synchronously in the following format:

{

" payment_id ": "65df5a6791a211e583461c6f65f84b6d",

" transaction_id ": "72c17f2d91a211e583461c6f65f84b6d",

" create_time ": "2015-07-07T08:05:38Z",

" update_time ": "2015-07-07T08:05:38Z",

" payment_method ": " xxxx ",

"status": "SUCCESS",

" error_code ": "",

"remarks": "",

" order_id ": " 100096247512",

"description": "Product title",

"amount": "1.00",

"currency": "CNY",

" request_type ": "WEB"

"pay_ url ":"https://....."

}

2.1.7 Payment order inquiry

The request entry is: /v1/payment/{ payment_id } or /v1/payment/order/{ order_ id }, the request method is GET, payment_id is the payment serial number returned by the platform, order_ id is the merchant order number, and the data is returned The format is the same as the payment response data format.

2.1.8 Payment result notification

parameter	The maximum length	Is it required?	illustrate
payment_id	50	yes	Payment platform serial number
transaction_id	50	yes	Payment platform order number
order_id	50	yes	Merchant order number
status	50	yes	Transaction status, SUCCESS is successful, FAIL is failed, WAIT_PAY is waiting for payment, PROCESSING is being processed
error_message	100	yes	Reason for transaction failure
payment_method	50	yes	payment method

the notify_url specified by the merchant . The data format is as follows:

{

"transaction_id":"72c17f2d91a211e583461c6f65f84b6d",

" order_id " : "100096247512",

" payment_id " : "65df5a6791a211e583461c6f65f84b6d",

"payment_method":" xxxx ",

" error_message ":"",

"status " : " SUCCESS "

}

2.2 Refund

The merchant refunds the specified order and sends it in POST mode, using UTF8 encoding format.

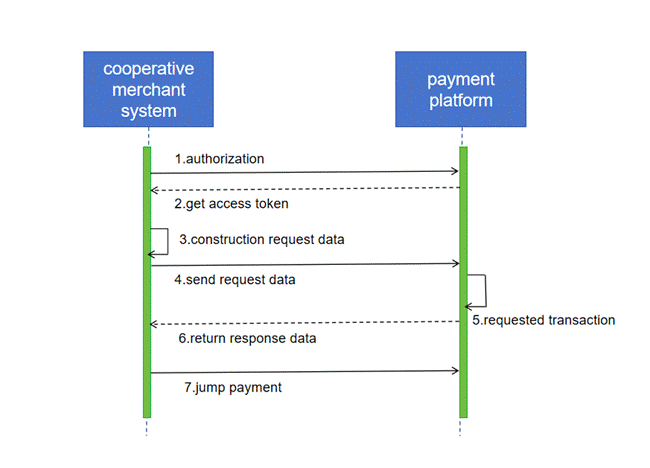

2.2.1Data interaction



2.2.2 Request entry

/v1/refund/{ order_id }, order_id is the merchant’s payment order number

2.2.3 Header

parameter	Is it required?	illustrate
Authorization	yes	The value is "Bearer " + access_token
Accept	yes	application/json
Content-Type	yes	application/json

2.2.4 Refund request

parameter	The maximum length	Is it required ?	illustrate
refund_order_id	50	yes	Merchant refund order number
amount	13,2	yes	Amount, rounded to two decimal places
currency	3	yes	Currency, CNY, USD , EUR , etc.
notify_url	255	yes	After the refund is completed, the payment platform sends the payment result to the merchant, and the merchant system is responsible for receiving the notification URL .



Data Format

{

"amount":"1.00",

" currency":"CNY ",

"refund_order_id":"be8578eb-91a0-11e5-8346-1c6f65f84b6d",

"notify_ url ":"http://www.mysite.com/refund_notify_url"

}

2.2.5Refund response

parameter	The maximum length	Is it required ?	illustrate
refund_id	50	yes	Payment platform refund number
refund_order_id	50	yes	Merchant refund order number
order_id _ _	50	yes	Merchant payment order number
amount	13,2	yes	Amount, rounded to two decimal places
currency	3	yes	Currency, CNY, USD , EUR , etc.
notify_url	255	yes	After the refund is completed, the payment platform sends the payment result to the merchant, and the merchant system is responsible for receiving the notification URL .
status	50	yes	Refund status , SUCCESS is successful , FAIL is failed, WAIT is waiting for refund.
create_time		yes	creation time
update_time		yes	Update time
links		yes	Action link



Data Format

{

" refund_id ": "2c04080b91a211e583461c6f65f84b6d",

" create_time ": "2015-07-07T09:10:52Z",

" update_time ": "2015-07-07T09:10:52Z",

"amount": "1.00",

"currency": "CNY",

" order_id ": "db9e9e6b-918e-11e5-8346-1c6f65f84b6d",

" refund_order_id ": " e8578eb-91a0-11e5-8346-1c6f65f84b6d ",

"links":

[

{

" href ": "http: //.xxx.com /v1/refund/2c04080b91a211e583461c6f65f84b6d",

" rel ": "self",

"method": "GET"

}

],

"status": "WAIT",

" notify_url ": " http://www.mysite.com/refund_notify_url "

}



2.2.6 Refund order inquiry

The request entry is: /v1/refund/{ refund _id}, the request method is GET , refund _id is the refund number returned by the payment platform , and the return data format is the same as the refund response data format .

2.2.7 Refund Notice

After the refund is completed, the payment platform initiates an HTTP POST request to the notify_url specified by the merchant . The data format is the same as the refund response data format .
